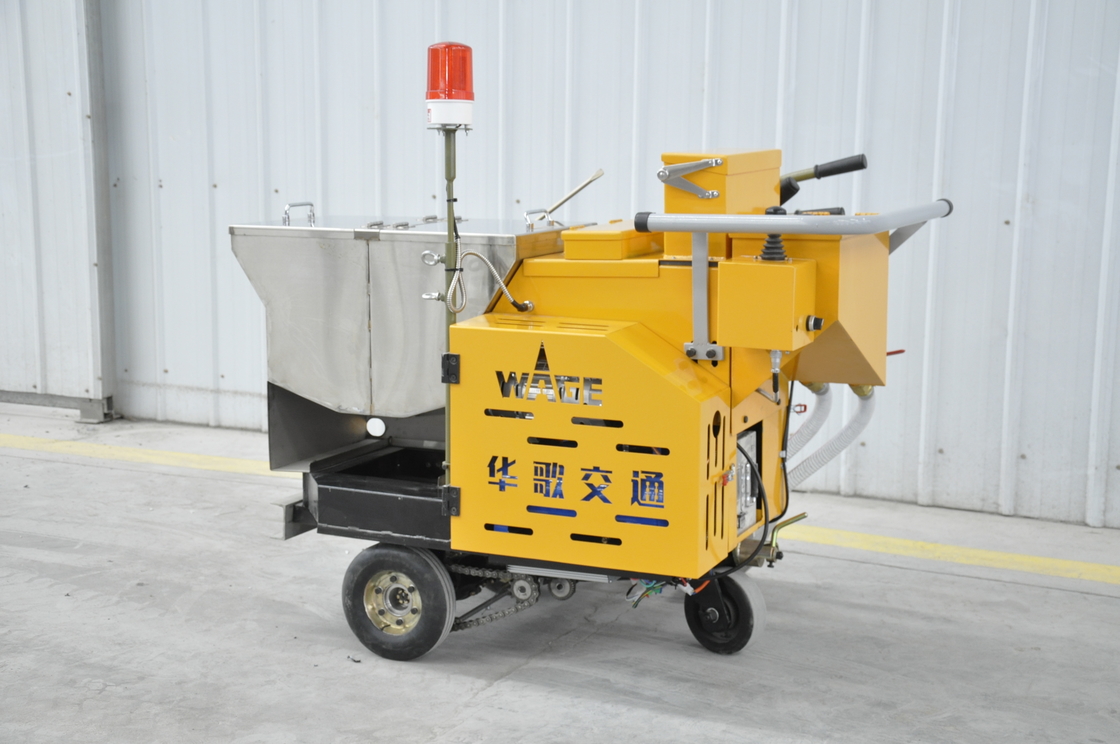

Two Components 2K Convex Line Profile Line Road Marking Machine-MMA

Chi tiết sản phẩm

Nguồn gốc: Trung Quốc

Hàng hiệu: WAGE

Chứng nhận: EMS, OHSMS

Số mô hình: HG-SVM

Tài liệu: Sổ tay sản phẩm PDF

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu: 1 bộ

Giá bán: 5000-8000usd per set

chi tiết đóng gói: Hộp

Thời gian giao hàng: 1 đến 3 tuần

Điều khoản thanh toán: L/C, T/T, Western Union, MoneyGram

Khả năng cung cấp: 10 bộ mỗi tuần

Nhận được giá tốt nhất
Liên hệ ngay bây giờ
Thông số kỹ thuật
Làm nổi bật:

2K convex line marking machine

,

MMA road marking equipment

,

two-component road marking machine

mô hình đánh dấu:
Hai thành phần đường lồi
máy pha chế:
tự thả
thể tích xi lanh sơn:
60L*2
xi lanh thủy tinh:
25kg
Kích thước:
1400*800*1100mm
Vật liệu:
Thép không gỉ
Tên sản phẩm:
Máy đánh dấu đường hai thành phần
Độ dày phun:
1-4mm
Chiều rộng phun:
50-400mm
Trọng lượng:
200kg
mô hình đánh dấu:
Hai thành phần đường lồi
máy pha chế:
tự thả
thể tích xi lanh sơn:
60L*2
xi lanh thủy tinh:
25kg
Kích thước:
1400*800*1100mm
Vật liệu:
Thép không gỉ
Tên sản phẩm:
Máy đánh dấu đường hai thành phần
Độ dày phun:
1-4mm
Chiều rộng phun:
50-400mm
Trọng lượng:
200kg
Mô tả
Two Components 2K Convex Line Profile Line Road Marking Machine-MMA
Two Components 2K Convex Line Profile Line Road Marking Machine-MMA
Product Specifications
Attribute Value
Marking Model Two components convex line
Dispenser Self dropping
Paint Cylinder Volume 60L*2
Glass Cylinder 25kg
Dimensions 1400*800*1100mm
Material Stainless Steel
Product Name Two Component Road Marking Machine
Spray Thickness 1-4mm
Spray Width 50-400mm
Weight 200kg
Product Overview

Convex line two component road line marking machine

Two Components 2K Convex Line Profile Line Road Marking Machine-MMA 0

General information: Two-component marking series is divided into spraying and scraping two construction processes. Two coatings with the aid of two pumps or two paint barrels after mixing chemical reaction to form marking. Compared with the hot melt marking, the two-component marking construction has the advantages of:

  • Environmental protection
  • High wear resistance
  • Good reflectivity
  • Long service life
  • Easy construction
Two Components 2K Convex Line Profile Line Road Marking Machine-MMA 1

HG-20MM-II puts two kinds of coatings in the same barrel separated. After discharging the coatings from the tank, the coatings are fully stirred by an electric stirring shaft. After mixing in the crossing hopper, the chemical reaction is carried out. Finally, the marking is done through the crossing hopper. Compared with spraying two-component marking, scraping marking has the advantages of:

  • Thicker marking thickness
  • Longer wear resistance
  • Better reflectivity
  • More uniform mixing
Technical Parameters
Parameter HG-SVM
Marking Mode 2K convex line
Agitation Speed 650r/min
Glass Micro Sphere Cylinder Capacity 25kg
Spraying System Self dropping
Paint Cylinder Capacity 60L/tank x 2
Marking Thickness 1.2-2.5mm adjustment within ranges
Standard Width 150mm
Width Optional 100/200/300/400/450mm (scoops replacement)
Size (L*W*H) 1200*900*1100mm
Weight 200kg
Construction
Two Components 2K Convex Line Profile Line Road Marking Machine-MMA 2
